20m 22m 54m 80m water submersible fountain pump for music fountain landscape
Submersible fountain pump parameters:
(It is regular submersible pump type in Shenlong pump factory, stainless steel 304/316/316l and 380v/440v/480v/600v/660v, etc. Please kindly choose submersible pump type you are interested.)
| Model | Flow | Head | Power | Max. Dia. |
| QS type | m3/h | m | kw | mm |
| QS(P)10-40/3-2.2 | 10 | 40 | 2.2 | 170 |
| QS(P)15-26-2.2 | 15 | 26 | 2.2 | 170 |
| QS(P)20-20-2.2 | 20 | 20 | 2.2 | 170 |
| QS(P)65-7-2.2 | 65 | 7 | 2.2 | 168 |
| QS(P)15-34/2-3 | 15 | 34 | 3 | 168 |
| QS(P)10-54/3-3 | 10 | 54 | 3 | 170 |
| QS(P)80-7-3 | 80 | 7 | 3 | 187 |
| QS(P)100-6-3 | 10 | 6 | 3 | 200 |
| QS(P)10-65/5-4 | 10 | 65 | 4 | 168 |
| QS(P)10-81/6-4 | 10 | 81 | 4 | 168 |
| QS(P)65-13-4 | 65 | 13 | 4 | 168 |
| QS(P)100-9-4 | 100 | 9 | 4 | 168 |
| QS(P)10-108/8-5.5 | 10 | 108 | 5.5 | 187 |
| QS(P)65-20-5.5 | 65 | 20 | 5.5 | 187 |
| QS(P)80-15-5.5 | 80 | 15 | 5.5 | 187 |
| QS(P)100-12-5.5 | 100 | 12 | 5.5 | 200 |
| QS(P)120-10-5.5 | 120 | 10 | 5.5 | 200 |
| QS(P)220-5-5.5 | 220 | 5 | 5.5 | 200 |
| QS(P)15-80/6-7.5 | 15 | 80 | 7.5 | 187 |
| QS(P)20-75/4-7.5 | 20 | 75 | 7.5 | 187 |
| QS(P)30-50/3-7.5 | 30 | 50 | 7.5 | 187 |
| QS(P)32-48/4-7.5 | 32 | 48 | 7.5 | 187 |
| QS(P)50-30/2-7.5 | 50 | 30 | 7.5 | 187 |
| QS(P)65-25-7.5 | 65 | 25 | 7.5 | 187 |
| QS(P)80-22/2-7.5 | 80 | 22 | 7.5 | 187 |
| QS(P)100-15-7.5 | 100 | 15 | 7.5 | 200 |
| QS(P)100-17-7.5 | 100 | 17 | 7.5 | 200 |
| QS(P)250-8-7.5 | 250 | 8 | 7.5 | 200 |
Submersible fountain pump overview:
1. Power: 2.2kw-7.5kw
2. Flow: 10-250m3/h
3. Head: 6-121m
4. Material: cast iron/stainless steel 304/316/316l
5. Install: vertical or horizontal
Submersible fountain pump applications:
Fountain water is a kind of artificial landscape that we often see, generally through the pressure of the fountain submersible pump, the static water into moving water, through the form of lighting effect, let the water more rich, more ornamental.General fountain submersible pumps are widely used in large square fountain, music fountain, water curtain fountain, cold fog fountain, lake fountain, swinging fountain, hotel fountain and so on.

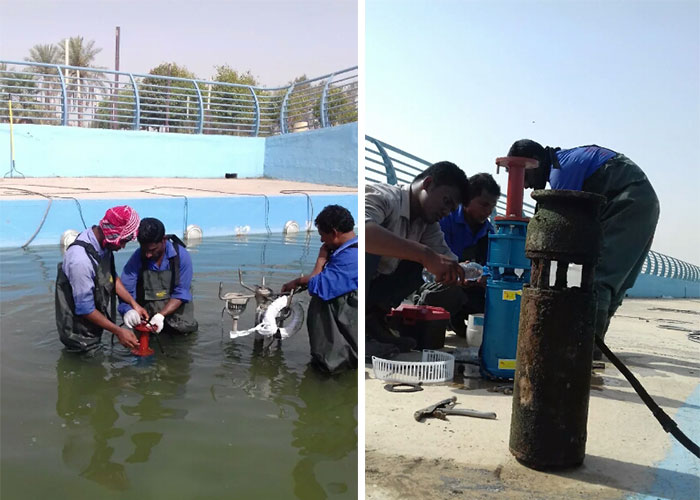

submersible fountain pump install
customers would like to replace their previous subnersible fountain pump manufacturer, therefore, we need to know more local site:
use condition, water medium, max head, etc. We communicates with each other about 2 months, then we do ODM for our customers
about 67 pieces submersible fountian pumps, used for music fountain lanscape. Finally, our submersible fountain pumps running well now,
gain appreciation from their government.
