7 - 40m Head Submersible Dirty Water Pump 380v / 440v Voltage Vertical Installation

Brand Name : APK

Model Number : WQ

Certification : ISO9001;ISO4001;ISO18001;CE,BV; TUV; SABER

Place of Origin : Henan, China

MOQ : 1 piece

Price : Please feel free to contact us

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 8578 pieces per month

Delivery Time : 2-5 working days

Packaging Details : Sewage submersible pump is packed with wooden case or 20 inch container.

Flow : 80m3/h 100m3/h 200m3/h 300m3/h sewage submersible pump

Head : 7-40m

Power : 7.5kw-37kw

Voltage : 380v/440v or as per request

Outlet diameter : 100mm 150mm 200mm

Speed : 980r/min 1470r/min 2900r/min

Install : Vertical

Quality warranty : One year or more

Contact Now

7 - 40m Head Submersible Dirty Water Pump 380v / 440v Voltage Vertical Installation

Shenlong pump factory WQ series sewage submersible pump, which absorbs the advantages of similar sewage pumps at domestic and abroad, and carrying out comprehensive optimization design in hydraulic model, mechanical structure, sealing, cooling, protection and control. It has good performance in discharging solid objects and anti-fiber winding, high efficiency and energy saving, and high reliability.

With professional development of dedicated electric control cabinet, not only can realize automatic control, but also ensure the safe and reliable operation of the motor; various installation methods, simplify pumping station and save investment.

7 - 40m Head Submersible Dirty Water Pump 380v / 440v Voltage Vertical Installation

Sewage pump stainless steel material:

7 - 40m Head Submersible Dirty Water Pump 380v / 440v Voltage Vertical Installation

80m3/h 100m3/h 200m3/h 300m3/h sewage submersible pump parameters:

Outlet diameter	Model	Flow	Head	Speed	Power
mm	WQ Series	m3/h	m	r/min	kw
100	100WQ80-18-7.5	80	18	1440	7.5
100	100WQ100-15-7.5	100	15	1440	7.5
100	100WQ80-24-11	80	24	2900	11
100	100WQ100-25-11	100	25	1460	11
100	100WQ80-32-15	80	32	2900	15
100	100WQ100-30-15	100	30	1460	15
100	100WQ80-36-18.5	80	36	2900	18.5
100	100WQ100-35-18.5	100	35	1470	18.5
100	100WQ80-40-22	80	40	2900	22
150	150WQ200-30-37	200	30	1470	37
200	200WQ300-7-11	300	7	1460	11
200	200WQ300-10-15	300	10	1460	15
200	200WQ300-13-18.5	300	13	1470	18.5
200	200WQ300-15-18.5	300	15	1470	18.5
200	200WQ300-15-22	300	15	1470	22
200	200WQ300-20-30	300	20	980	30

It is one part of 80m3/h 100m3/h 200m3/h 300m3/h sewage submersible pump parameters. If you would like to know more, please feel free to send an inquiry.

Product Tags:

submersible sewage water pump

submersible dirty water pump

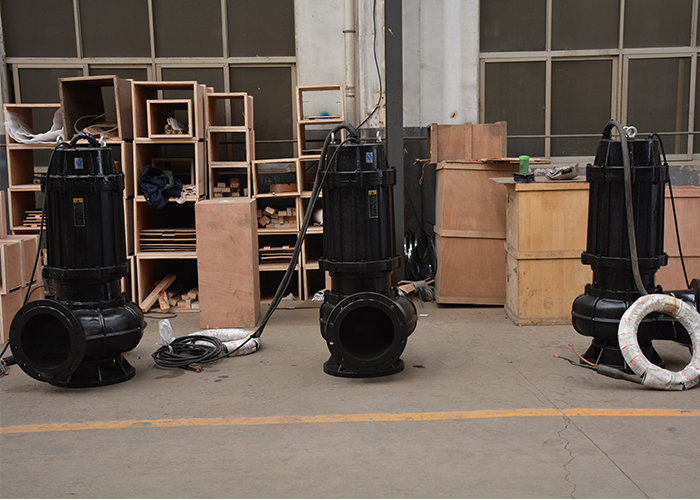

7 - 40m Head Submersible Dirty Water Pump 380v / 440v Voltage Vertical Installation Images
